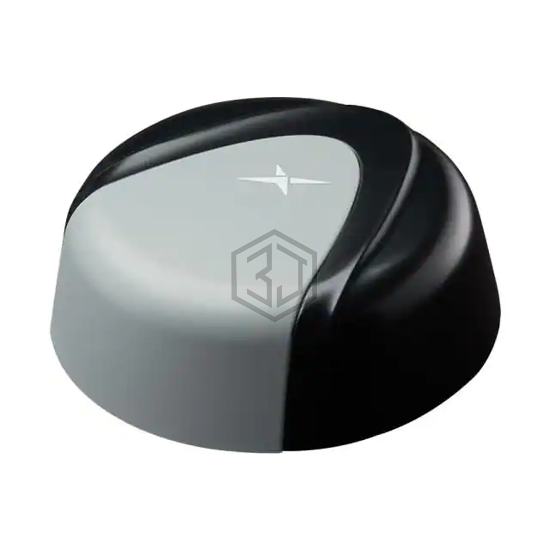

5IN1 GNSS 5G WIFI ANTENNA
MA1505.AK.001 is a RF Antennas manufactured by Taoglas Limited. 5IN1 GNSS 5G WIFI ANTENNA. Key specifications: mounting type Panel Mount, termination SMA Male (2), RP-SMA, ingress protection IP67, power - max 2 W.
In Stock: 97
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Module |
| Number of Bands | 13 |
| VSWR | 2, 2.5 |
| Return Loss | - |
| Gain | -0.08dBi, 1.04dBi, 2.03dBi, 3.76dBi, 31.7dBic, 32.4dBic, 32.4dBic, 4.55dBi, 1.4dBi, 4.96dBi, 5.82dBi, 2.55dBi, 5.89dBi |
| Power - Max | 2 W |
| Features | Cable - 300mm, LNA, Filter |
| Termination | SMA Male (2), RP-SMA |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 2.263" (57.47mm) |
| Applications | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
Submit your RFQ for MA1505.AK.001 and get a quote within 24 hours.
