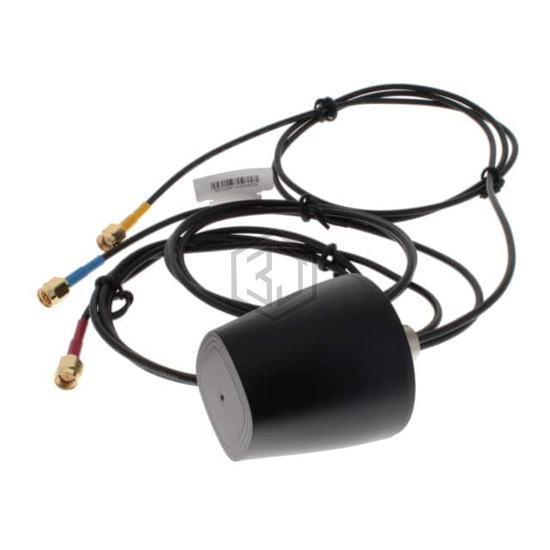

MA145.A.LBC.001 - Taoglas Limited - RF Antennas

MA145.A.LBC.001

Taoglas Limited

3IN1 GNSS, LTE & WIFI ANT 2.4GHZ

MA145.A.LBC.001 is a RF Antennas manufactured by Taoglas Limited. 3IN1 GNSS, LTE & WIFI ANT 2.4GHZ. Key specifications: mounting type Panel Mount, termination RP-SMA Male, SMA Male, ingress protection IP67, power - max 10 W.

In Stock: 170

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular, Navigation, WiFi
Frequency GroupWide Band
Frequency (Center/Band)657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz
Frequency Range617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz
Antenna TypeDome
Number of Bands11
VSWR2
Return Loss-
Gain-0.2dBi, 1.3dBi, 0.4dBi, 3.6dBi, -1.98dBi, -1.67dBi, 3.8dBi, 3.5dBi, 2.7dBi, 3.1dBi, 3.6dBi
Power - Max10 W
FeaturesCable - 1m, LNA, Filter
TerminationRP-SMA Male, SMA Male
Ingress ProtectionIP67
Mounting TypePanel Mount
Height (Max)1.909" (48.50mm)
Applications3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi

Frequently Asked Questions

MA145.A.LBC.001 is a RF Antennas manufactured by Taoglas Limited. 3IN1 GNSS, LTE & WIFI ANT 2.4GHZ

The mounting type of MA145.A.LBC.001 is Panel Mount.

The termination type of MA145.A.LBC.001 is RP-SMA Male, SMA Male.

The protection rating of MA145.A.LBC.001 is IP67.
