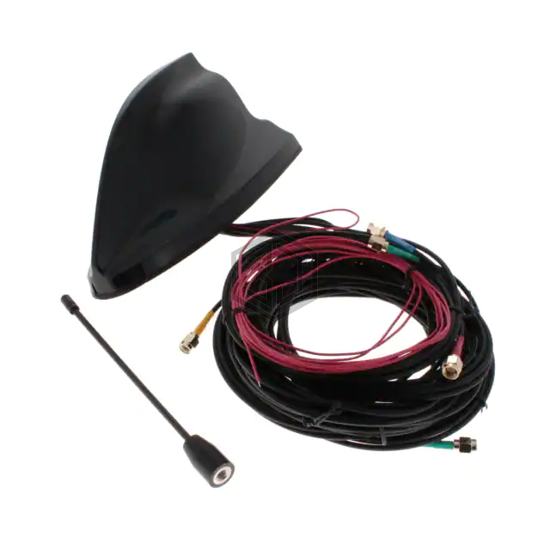

ANTENNA RAPTORIII 7IN1 3M COMBO
MA1270.A.LBICGTY.005 is a RF Antennas manufactured by Taoglas Limited. ANTENNA RAPTORIII 7IN1 3M COMBO. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP67, power - max 10 W.
In Stock: 43
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, Navigation, WiFi |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.07MHz, 98MHz, 425MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.59GHz, 3.55GHz, 5.5GHz, 5.5375GHz |
| Frequency Range | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 380MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.8GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz |
| Antenna Type | Dome |
| Number of Bands | 16 |
| VSWR | 2, 3.7 |
| Return Loss | -11dB |
| Gain | -1.7dBi, -3.7dBi, -1.9dBi, -0.3dBi, 1.6dBi, 3.6dBi, 0dBi, 1.8dBi, 0.6dBi, 0.4dBi, 2.8dBi, 3.3dBi, 0.9dBi, 3.7dBi |
| Power - Max | 10 W |
| Features | Cable - 3m, LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.661" (92.98mm) |
| Applications | 3G, 4G, 5G, Beidou, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, WCDMA, Wi-Fi |
Submit your RFQ for MA1270.A.LBICGTY.005 and get a quote within 24 hours.
