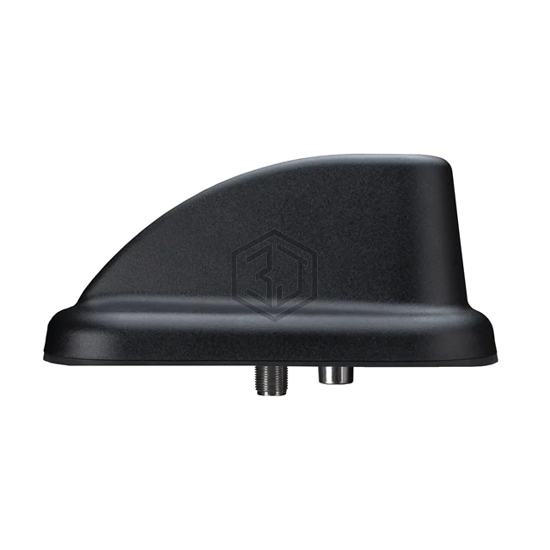

4IN1 SHARKFIN 300MM RG-174:GNSS
MA1044.A.ACTX.002 is a RF Antennas manufactured by Taoglas Limited. 4IN1 SHARKFIN 300MM RG-174:GNSS. Key specifications: mounting type Panel Mount, termination SMB, Fakra, ingress protection IP65, frequency range 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.32GHz ~ 2.345GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz.
In Stock: 22
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.07MHz, 98MHz, 1.575GHz, 1.602GHz, 2.332GHz, 2.45GHz, 5.415GHz |
| Frequency Range | 535kHz ~ 1.605MHz, 88MHz ~ 108MHz, 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz, 2.32GHz ~ 2.345GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.83GHz |
| Antenna Type | Module |
| Number of Bands | 7 |
| VSWR | - |
| Return Loss | -15dB, -5dB, -15dB, -10dB |
| Gain | 3dBi, 4dBi, 4.5dBi, 6dBi |
| Power - Max | - |
| Features | Cable - 300mm |
| Termination | SMB, Fakra |
| Ingress Protection | IP65 |
| Mounting Type | Panel Mount |
| Height (Max) | 3.042" (77.27mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS, Wi-Fi |
Submit your RFQ for MA1044.A.ACTX.002 and get a quote within 24 hours.
