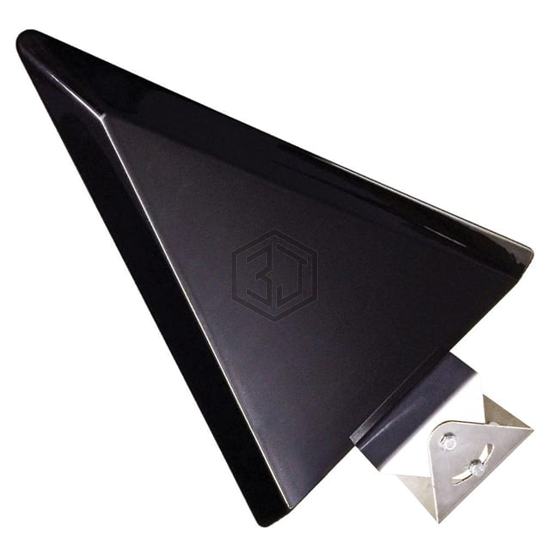

ENGAGER LPDA.02 EXTERNAL WIDE BA
LPDA.02.032111 is a RF Antennas manufactured by Taoglas Limited. ENGAGER LPDA.02 EXTERNAL WIDE BA. Key specifications: mounting type Bracket Mount, termination SMA Male, power - max 10 W, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 1.99MHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz.
In Stock: 3,424
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.5GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 1.99MHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.4GHz ~ 3.6GHz |
| Antenna Type | Module |
| Number of Bands | 6 |
| VSWR | 2, 3 |
| Return Loss | - |
| Gain | 7dBi, 6dBi, 6dBi, 5.5dBi, 5dBi, 5dBi |
| Power - Max | 10 W |
| Features | Cable - 300mm |
| Termination | SMA Male |
| Ingress Protection | - |
| Mounting Type | Bracket Mount |
| Height (Max) | 1.260" (32.00mm) |
| Applications | DCS, GSM, HSPA, LTE, PCS, UMTS, Wi-Fi |
Submit your RFQ for LPDA.02.032111 and get a quote within 24 hours.
