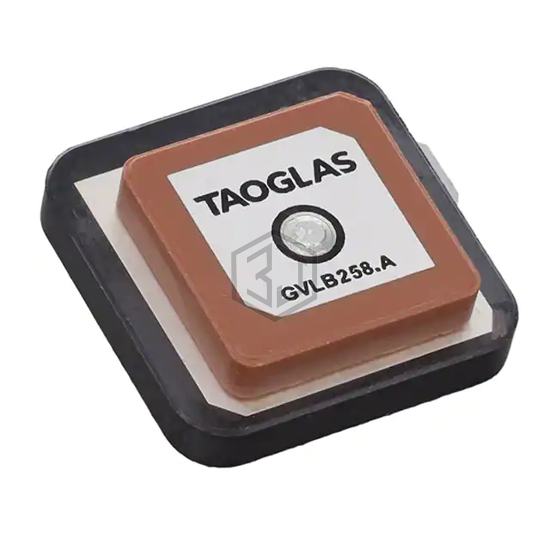

GPS/GLONASS/BEIDOU SINGLE FEED S
GVLB258.A is a RF Antennas manufactured by Taoglas Limited. GPS/GLONASS/BEIDOU SINGLE FEED S. Key specifications: mounting type Adhesive, termination Pin, frequency range 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz.
In Stock: 276
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.176GHz, 1.561GHz, 1.575GHz, 1.6015GHz |
| Frequency Range | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz |
| Antenna Type | Ceramic Patch |
| Number of Bands | 4 |
| VSWR | - |
| Return Loss | - |
| Gain | 2.31dBi, 2.94dBi, 2.87dBi, 3.08dBi |
| Power - Max | - |
| Features | - |
| Termination | Pin |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.315" (8.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
Submit your RFQ for GVLB258.A and get a quote within 24 hours.
