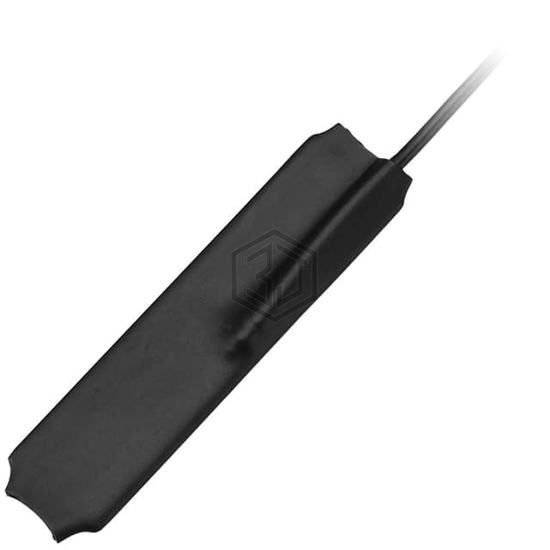

GSA.8830 3G/2G CELLULAR ADHESIVE
GSA.8830.A.201111 is a RF Antennas manufactured by Taoglas Limited. GSA.8830 3G/2G CELLULAR ADHESIVE. Key specifications: mounting type Adhesive, termination SMA Male, ingress protection IP67, frequency range 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz.
In Stock: 179
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz |
| Frequency Range | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz |
| Antenna Type | Flat Bar |
| Number of Bands | 5 |
| VSWR | - |
| Return Loss | -8dB, -9dB, -10dB |
| Gain | -0.23dBi, 0.77dBi, 0.67dBi, 0.98dBi, 0.73dBi |
| Power - Max | - |
| Features | Cable - 2m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Adhesive |
| Height (Max) | 0.181" (4.60mm) |
| Applications | 3G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, PCS, UMTS, WCDMA |
Submit your RFQ for GSA.8830.A.201111 and get a quote within 24 hours.
