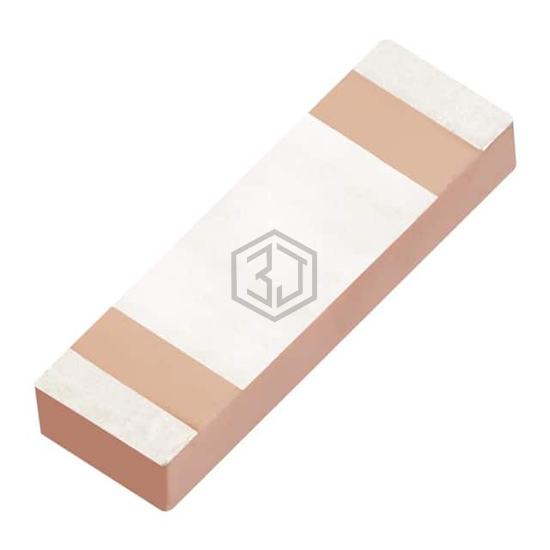

GGBLA.125.A
GPS/GLONASS/GALILEO/BEIDOU CERAM
GGBLA.125.A is a RF Antennas manufactured by Taoglas Limited. GPS/GLONASS/GALILEO/BEIDOU CERAM. Key specifications: mounting type Surface Mount, termination Solder.
In Stock: 6,205
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 1.1764GHz, 1.2276GHz, 1.2788GHz, 1.561GHz, 1.575GHz, 1.602GHz |
| Frequency Range | - |
| Antenna Type | Chip |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | -10dB, -10dB, -5dB, -10dB, -10dB, -10dB |
| Gain | 3.6dBi, 3.3dBi, 3.3dBi, 2.6dBi, 2.8dBi, 3dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.059" (1.50mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
Frequently Asked Questions
GGBLA.125.A is a RF Antennas manufactured by Taoglas Limited. GPS/GLONASS/GALILEO/BEIDOU CERAM
The mounting type of GGBLA.125.A is Surface Mount.
The termination type of GGBLA.125.A is Solder.
