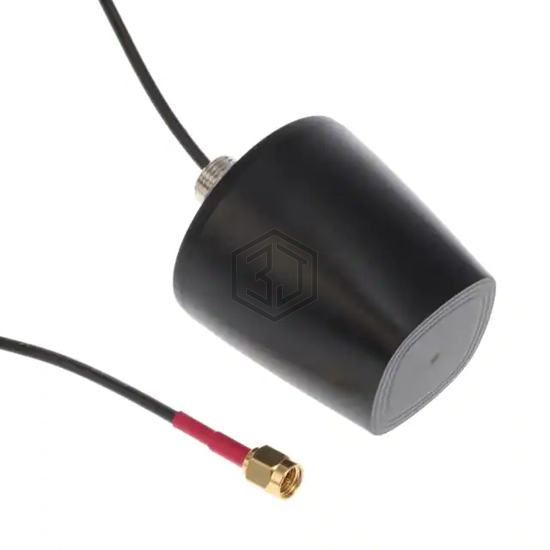

5G-4G ANT WITH 2M RG-174 & SMA
G45.A.201111 is a RF Antennas manufactured by Taoglas Limited. 5G-4G ANT WITH 2M RG-174 & SMA. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP67, power - max 2 W.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 3.75GHz |
| Frequency Range | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz |
| Antenna Type | Dome |
| Number of Bands | 7 |
| VSWR | - |
| Return Loss | - |
| Gain | 1.3dBi, 0.6dBi, 1.4dBi, -0.8dBi, 1.5dBi, 1dBi, -1.3dBi |
| Power - Max | 2 W |
| Features | Cable - 2m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Panel Mount |
| Height (Max) | 1.909" (48.50mm) |
| Applications | 3G, 4G, 5G, HSPA, HSPA+, LTE, WCDMA |
Submit your RFQ for G45.A.201111 and get a quote within 24 hours.
