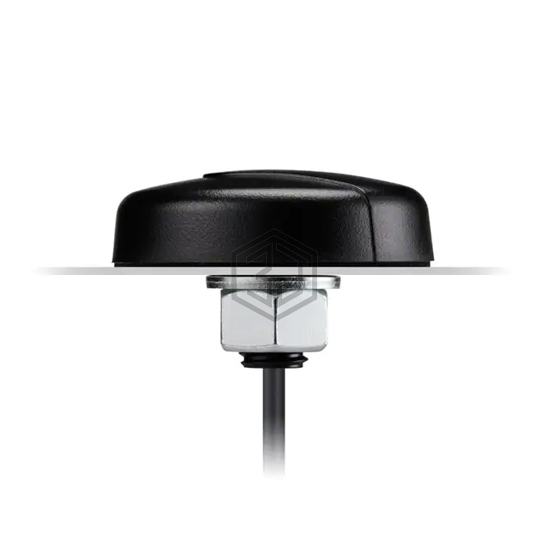

IDAS LTE MIMO CEILING MOUNT ANTE
G35.A.305111 is a RF Antennas manufactured by Taoglas Limited. IDAS LTE MIMO CEILING MOUNT ANTE. Key specifications: mounting type Surface Mount, termination SMA Male, ingress protection IP67, power - max 2 W.
In Stock: 316
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 752MHz, 869MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.495GHz |
| Frequency Range | 698MHz ~ 806MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz |
| Antenna Type | Dome |
| Number of Bands | 7 |
| VSWR | - |
| Return Loss | -4dB, -10dB, -6dB, -7dB, -6dB, -6dB, -4dB |
| Gain | 1.32dBi, 2.05dBi, 1.88dBi, 3.83dBi, 4.67dBi, 4.89dBi, 4.91dBi |
| Power - Max | 2 W |
| Features | Cable - 3m |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Surface Mount |
| Height (Max) | 0.685" (17.40mm) |
| Applications | LTE |
Submit your RFQ for G35.A.305111 and get a quote within 24 hours.
