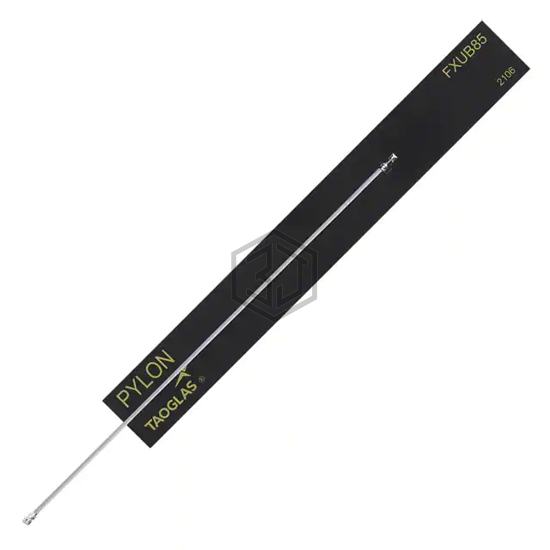

ULTRA WIDE BAND FLEX ANTENNA 600
FXUB85.54.0150C is a RF Antennas manufactured by Taoglas Limited. ULTRA WIDE BAND FLEX ANTENNA 600. Key specifications: mounting type Adhesive, termination IPEX MHF4L, power - max 5 W, frequency range 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz.
In Stock: 263
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 7 |
| VSWR | - |
| Return Loss | -6dB, -7dB, -8dB, -11dB, -15dB |
| Gain | 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi |
| Power - Max | 5 W |
| Features | Cable - 150mm |
| Termination | IPEX MHF4L |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.012" (0.30mm) |
| Applications | 3G, 4G, 5G, LTE, Wi-Fi |
Submit your RFQ for FXUB85.54.0150C and get a quote within 24 hours.
