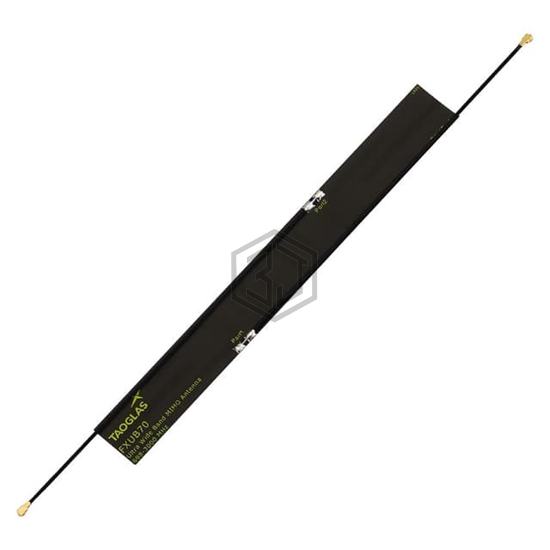

FXUB70.A.07.C.001 - Taoglas Limited - RF Antennas

FXUB70.A.07.C.001

Taoglas Limited

RF ANT 850MHZ/1.575GHZ FLT PATCH

FXUB70.A.07.C.001 is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/1.575GHZ FLT PATCH. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 5 W, frequency range 698MHz ~ 3GHz.

In Stock: 452

Product Attributes

AttributeValue
Product StatusActive
RF Family/StandardCellular, WiFi
Frequency GroupWide Band
Frequency (Center/Band)850MHz, 1.575GHz, 1.8GHz, 2.1GHz, 2.4GHz, 2.6GHz
Frequency Range698MHz ~ 3GHz
Antenna TypeFlat Patch
Number of Bands6
VSWR2, 2, 1.8, 1.7, 1.7, 2.3
Return Loss-10dB, -10dB, -11dB, -12dB, -12dB, -8dB
Gain1dBi, 2.5dBi, 3.5dBi, 5dBi, 5dBi, 4.5dBi
Power - Max5 W
FeaturesCable - 150mm
TerminationU.FL (UMCC), IPEX MHF1
Ingress Protection-
Mounting TypeAdhesive
Height (Max)0.008" (0.20mm)
ApplicationsCDMA, GPRS, GSM, HSPA, LTE, Wi-Fi

Frequently Asked Questions

FXUB70.A.07.C.001 is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/1.575GHZ FLT PATCH

The mounting type of FXUB70.A.07.C.001 is Adhesive.

The termination type of FXUB70.A.07.C.001 is U.FL (UMCC), IPEX MHF1.

The power rating of FXUB70.A.07.C.001 is 5 W.
