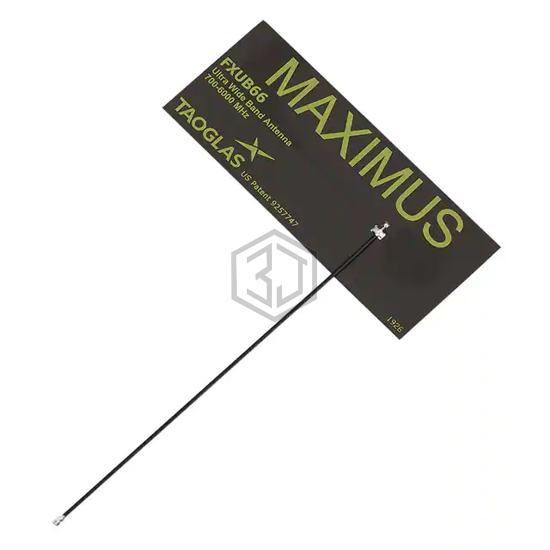

MAXIMUS ULTRA WIDE BAND FLEX ANT
FXUB66.54.0150C is a RF Antennas manufactured by Taoglas Limited. MAXIMUS ULTRA WIDE BAND FLEX ANT. Key specifications: mounting type Adhesive, termination IPEX MHF4L, power - max 5 W, frequency range 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz.
In Stock: 363
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular, General ISM, Navigation, WiFi |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 780MHz, 1.4125GHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.6GHz, 3.55GHz, 5.4GHz |
| Frequency Range | 600MHz ~ 960MHz, 1.39GHz ~ 1.435GHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 4.8GHz ~ 6GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 9 |
| VSWR | 1.1, 2, 2.2, 3, 3.5 |
| Return Loss | -5dB, -5.5dB, -6dB, -7dB, -10dB, -20dB |
| Gain | 0.2dBi, 2.5dBi, 4.1dBi, 2dBi, 1.6dBi, 2.8dBi, 2.6dBi, 3.5dBi, 4.8dBi |
| Power - Max | 5 W |
| Features | Cable - 150mm |
| Termination | IPEX MHF4L |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | 2G, 3G, 4G, 5G, GNSS, ISM, Wi-Fi |
Submit your RFQ for FXUB66.54.0150C and get a quote within 24 hours.
