GPS/GALILEO & 2.4GHZ MULTI-BAND

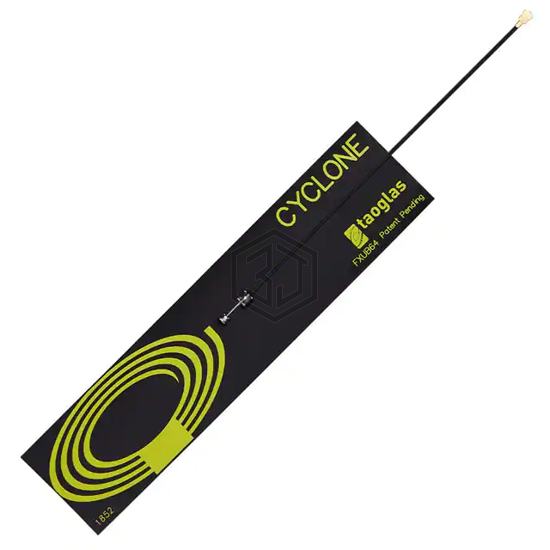

FXUB64.18.0150A is a RF Antennas manufactured by Taoglas Limited. GPS/GALILEO & 2.4GHZ MULTI-BAND. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 50 W, frequency range 617MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz.
In Stock: 733
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.575GHz, 1.85GHz, 1.9625GHz, 2.45GHz, 2.595GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.71GHz ~ 1.99GHz, 1.755GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | Flat Patch |
| Number of Bands | 7 |
| VSWR | - |
| Return Loss | 4dB, -7dB, -10dB, -10dB, -5dB, -4dB |
| Gain | 3.5dBi, 4.5dBi, 6dBi, 6dBi, 3.7dBi, 2.3dBi |
| Power - Max | 50 W |
| Features | Cable - 150mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | LTE |
Submit your RFQ for FXUB64.18.0150A and get a quote within 24 hours.
