3J LIMITED
FXP14.09.0100A

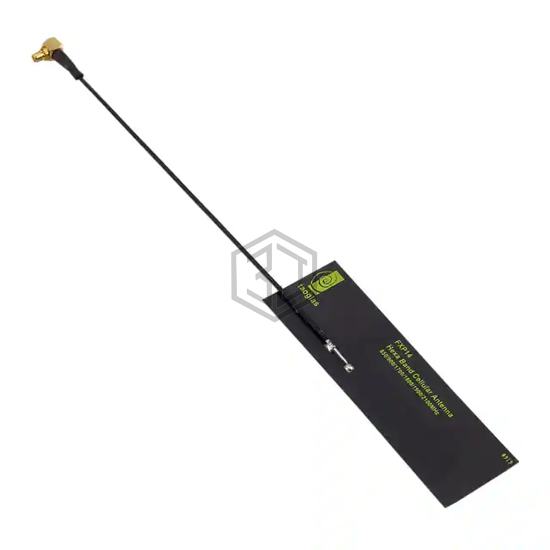

RF ANT 850MHZ/900MHZ FLAT PATCH
FXP14.09.0100A is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/900MHZ FLAT PATCH. Key specifications: mounting type Adhesive, termination MMCX Male.
In Stock: 280
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz |
| Frequency Range | - |
| Antenna Type | Flat Patch |
| Number of Bands | 6 |
| VSWR | 2.5 |
| Return Loss | -7dB, -12dB, -8dB, -9dB, -9dB, -8dB |
| Gain | 2dBi, 1.5dBi, 3dBi, 2.5dBi, 2dBi, 2.5dBi |
| Power - Max | - |
| Features | - |
| Termination | MMCX Male |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.004" (0.10mm) |
| Applications | CDMA, GSM |
Frequently Asked Questions
FXP14.09.0100A is a RF Antennas manufactured by Taoglas Limited. RF ANT 850MHZ/900MHZ FLAT PATCH
The mounting type of FXP14.09.0100A is Adhesive.
The termination type of FXP14.09.0100A is MMCX Male.
