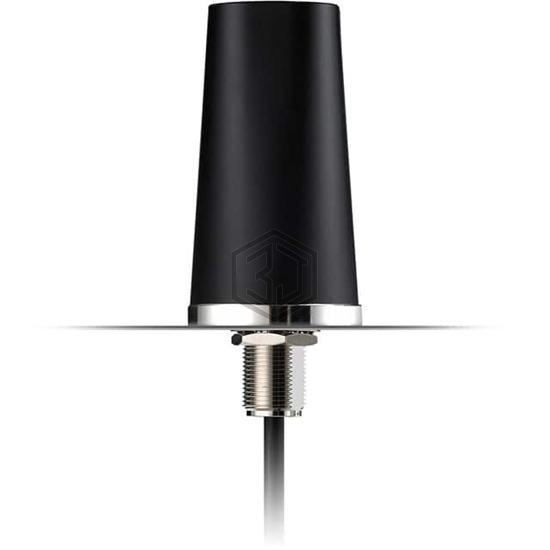

FNS.01.30WW111 - Taoglas Limited - RF Antennas

FNS.01.30WW111

Taoglas Limited

FIRSTNET BAND 14 TERMINAL SCREW

FNS.01.30WW111 is a RF Antennas manufactured by Taoglas Limited. FIRSTNET BAND 14 TERMINAL SCREW. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP67, IP69K, power - max 100 W.

In Stock: 10

Product Attributes

AttributeValue
Product StatusObsolete
RF Family/StandardCellular
Frequency GroupWide Band
Frequency (Center/Band)752MHz, 860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.495GHz, 3.5GHz
Frequency Range698MHz ~ 806MHz, 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 2.305GHz ~ 2.36GHz, 3.4GHz ~ 3.6GHz
Antenna TypeDome
Number of Bands10
VSWR-
Return Loss-8dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB, -10dB
Gain2.42dBi, 2.42dBi, 2.25dBi, 0.88dBi, 2.5dBi, 2.32dBi, 2.23dBi, 3.02dBi
Power - Max100 W
FeaturesCable - 3m
TerminationSMA Male
Ingress ProtectionIP67, IP69K
Mounting TypePanel Mount
Height (Max)3.128" (79.45mm)
ApplicationsDCS, GSM, LTE, PCS, WCDMA

Frequently Asked Questions

FNS.01.30WW111 is a RF Antennas manufactured by Taoglas Limited. FIRSTNET BAND 14 TERMINAL SCREW

The mounting type of FNS.01.30WW111 is Panel Mount.

The termination type of FNS.01.30WW111 is SMA Male.

The protection rating of FNS.01.30WW111 is IP67, IP69K.

Yes, FNS.01.30WW111 is listed as Obsolete. Consider requesting a quote for alternative parts.
