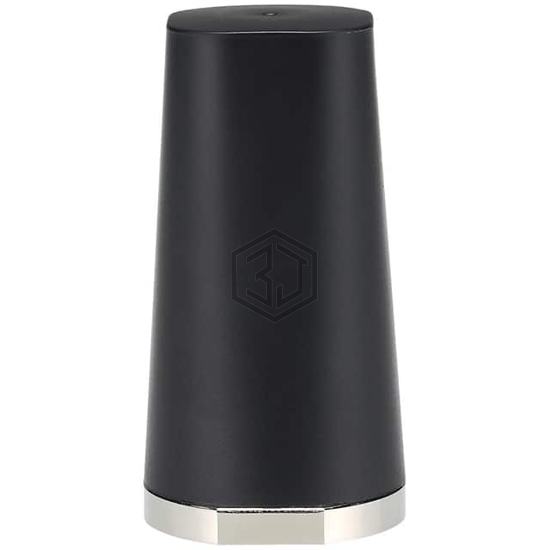

SHOCKWAVE RESPONSE FNS.01 FIRSTN
FNS.01.1F11 is a RF Antennas manufactured by Taoglas Limited. SHOCKWAVE RESPONSE FNS.01 FIRSTN. Key specifications: mounting type Panel Mount, termination N Type Male, ingress protection IP67, IP69K, power - max 100 W.
In Stock: 17
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750.5MHz, 860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz, 2.5GHz, 3.5GHz |
| Frequency Range | 698MHz ~ 803MHz, 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.880GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.7GHz, 2.305GHz ~ 2.36GHz, 3.4GHz ~ 2.6GHz |
| Antenna Type | Dome |
| Number of Bands | 10 |
| VSWR | - |
| Return Loss | -6dB, -10dB, -8dB, -5dB, -6dB, -6dB, -6dB, -7dB |
| Gain | 3.1dBi, 3.11dBi, 3.29dBi, 0.29dBi, 3.31dBi, 2.6dBi, 2.29dBi, 4.02dBi |
| Power - Max | 100 W |
| Features | - |
| Termination | N Type Male |
| Ingress Protection | IP67, IP69K |
| Mounting Type | Panel Mount |
| Height (Max) | 3.128" (79.45mm) |
| Applications | DCS, GSM, LTE, PCS, WCDMA |
Submit your RFQ for FNS.01.1F11 and get a quote within 24 hours.
