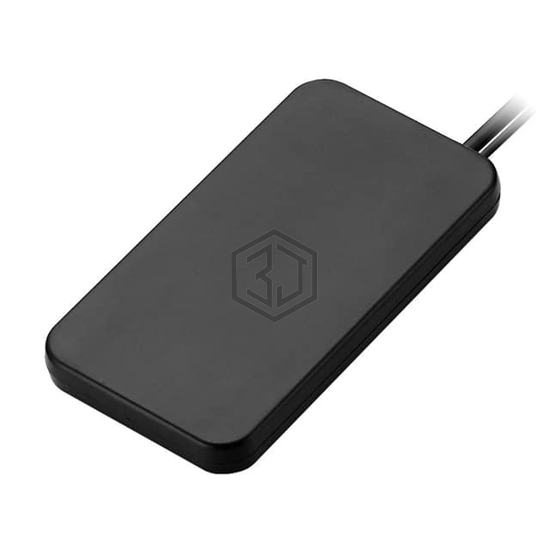

FMA253.A.LF.001 ADHESIVE MOUNT 2
FMA253.A.LF.001 is a RF Antennas manufactured by Taoglas Limited. FMA253.A.LF.001 ADHESIVE MOUNT 2. Key specifications: mounting type Surface Mount, termination SMA Male, ingress protection IP67, power - max 5 W.
In Stock: 98
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| RF Family/Standard | Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 750.5MHz, 753MHz, 859MHz, 920MHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.3325GHz |
| Frequency Range | 698MHz ~ 803MHz, 703MHz ~ 803MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz, 1.559GHz ~ 1.563GHz, 1.597GHz ~ 1.576GHz, 1.574GHz ~ 1.607GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.305GHz ~ 2.36GHz, 2.49GHz ~ 2.69GHz, 3.4GHz ~ 3.6GHz |
| Antenna Type | Module |
| Number of Bands | 13 |
| VSWR | 2, 3 |
| Return Loss | -6dB, -10dB |
| Gain | 0.72dBi, 1.29dBi, 2.13dBi, 1.7dBi, 3.03dBi, 4.22dBi, 3.79dBi, 3.37dBi, 3.05dBi |
| Power - Max | 5 W |
| Features | Cable - 2m, LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Surface Mount |
| Height (Max) | 0.551" (14.00mm) |
| Applications | Beidou, Galileo, GLONASS, GNSS, GPS |
Submit your RFQ for FMA253.A.LF.001 and get a quote within 24 hours.
