2 IN 1 PERMANENT MOUNT GPS (1M R

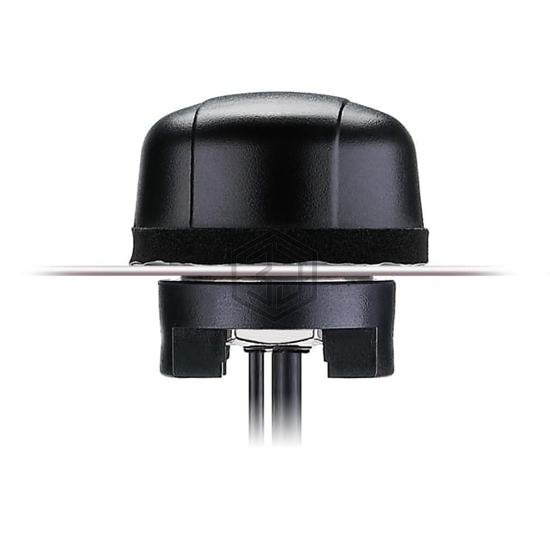

FMA103.A.AF.001 is a RF Antennas manufactured by Taoglas Limited. 2 IN 1 PERMANENT MOUNT GPS (1M R. Key specifications: mounting type Panel Mount, termination SMA Male, ingress protection IP67, IP69K, power - max 10 W.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| RF Family/Standard | Navigation |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 860MHz, 920MHz, 1.575GHz, 1.795GHz, 1.92GHz, 2.045GHz |
| Frequency Range | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.574GHz ~ 1.576GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz |
| Antenna Type | Dome |
| Number of Bands | 6 |
| VSWR | 2, 3.5 |
| Return Loss | -13dB, -11dB, -21dB, -21dB, -19dB |
| Gain | 0.1dBi, 1.6dBi, -1dBi, 0.1dBi, 0.6dBi, -0.9dBi |
| Power - Max | 10 W |
| Features | Cable - 3m, LNA |
| Termination | SMA Male |
| Ingress Protection | IP67, IP69K |
| Mounting Type | Panel Mount |
| Height (Max) | 1.142" (29.00mm) |
| Applications | GLONASS, GPS |
Submit your RFQ for FMA103.A.AF.001 and get a quote within 24 hours.
