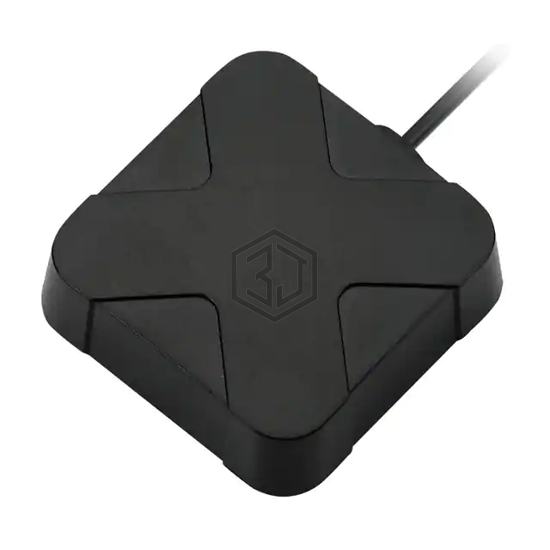

MAGMAX2 GPS L1/L2 MAG MOUNT ANTE
AA.175.301111 is a RF Antennas manufactured by Taoglas Limited. MAGMAX2 GPS L1/L2 MAG MOUNT ANTE. Key specifications: mounting type Surface Mount, termination SMA Male, ingress protection IP67, frequency range 1.2257GHz ~ 1.2277GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz.
In Stock: 342
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.2276GHz, 1.575GHz, 1.602GHz |
| Frequency Range | 1.2257GHz ~ 1.2277GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz |
| Antenna Type | Module |
| Number of Bands | 3 |
| VSWR | 2 |
| Return Loss | -10dB |
| Gain | 3.78dBi, 2.22dBi, 2.05dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Surface Mount |
| Height (Max) | 0.669" (17.00mm) |
| Applications | GLONASS, GNSS, GPS |
Submit your RFQ for AA.175.301111 and get a quote within 24 hours.
