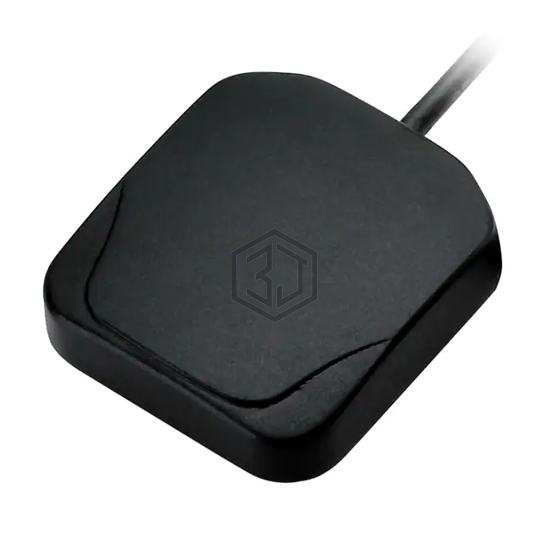

AA.166.A.301111 ULYSSES MINIATUR
AA.166.A.301111 is a RF Antennas manufactured by Taoglas Limited. AA.166.A.301111 ULYSSES MINIATUR. Key specifications: mounting type Magnetic, termination SMA Male, ingress protection IP67, frequency range 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz.
In Stock: 158
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Navigation |
| Frequency Group | UHF (1GHz ~ 2GHz) |
| Frequency (Center/Band) | 1.559GHz, 1.561GHz, 1.575GHz, 1.592GHz, 1.602GHz |
| Frequency Range | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz |
| Antenna Type | Module |
| Number of Bands | 5 |
| VSWR | 5 |
| Return Loss | -3dB |
| Gain | 1.92dBi, 2.34dBi, 0.34dBi, 2.1dBi, 1.81dBi |
| Power - Max | - |
| Features | Cable - 3m, LNA, Filter |
| Termination | SMA Male |
| Ingress Protection | IP67 |
| Mounting Type | Magnetic |
| Height (Max) | 0.394" (10.00mm) |
| Applications | Beidou, Galileo, GLONASS, GPS |
Submit your RFQ for AA.166.A.301111 and get a quote within 24 hours.
