INDUCT ARRAY 2 COIL 47UH SMD

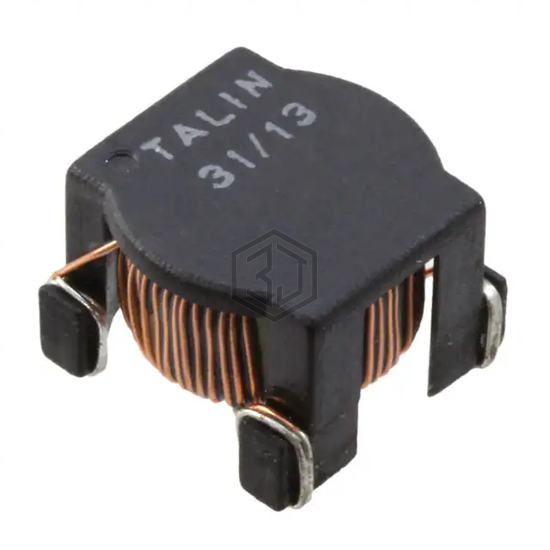

LCP5-2.04-47 is a Arrays, Signal Transformers manufactured by Talema Group LLC. INDUCT ARRAY 2 COIL 47UH SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, size / dimension 0.512" L x 0.512" W (13.00mm x 13.00mm).
In Stock: 8,809
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 47 µH |
| Inductance - Connected In Series | 188 µH |
| Tolerance | ±15% |
| Current Rating - Parallel | 2.04 A |
| Current Rating - Series | 1.02 A |
| Current Saturation - Parallel | - |
| Current Saturation - Series | - |
| DC Resistance (DCR) - Parallel | 72mOhm |
| DC Resistance (DCR) - Series | 288mOhm |
| Shielding | Unshielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Height | 0.358" (9.10mm) |
