Taiwan Semiconductor Corporation
COMPLEMENTARY N & P-CHANNEL POWE

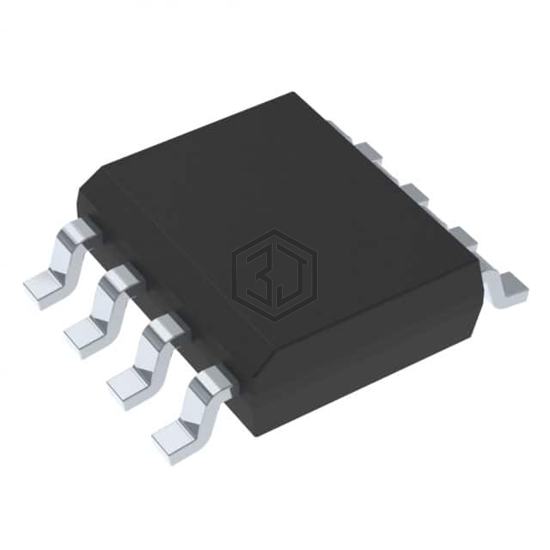

TSM8588CS RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. COMPLEMENTARY N & P-CHANNEL POWE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 1.4W (Ta), 5.7W (Tc).
In Stock: 9,496
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel Complementary |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta), 5A (Tc), 2A (Ta), 4A (Tc) |
| Rds On (Max) @ Id, Vgs | 103mOhm @ 2.5A, 10V, 180mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.4nC @ 10V, 9nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 527pF @ 30V, 436pF @ 30V |
| Power - Max | 1.4W (Ta), 5.7W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
Submit your RFQ for TSM8588CS RLG and get a quote within 24 hours.
