Taiwan Semiconductor Corporation
MOSFET N/P-CH 60V 24A/18A 8PDFN

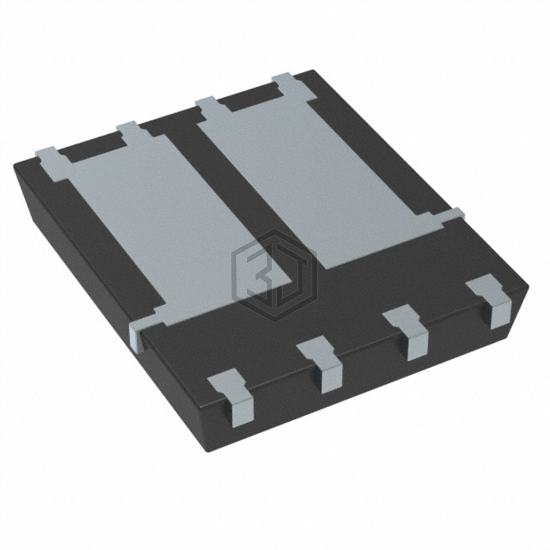

TSM6502CR RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET N/P-CH 60V 24A/18A 8PDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 40W.
In Stock: 15,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc), 18A (Tc) |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 5.4A, 10V, 68mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 10.3nC @ 4.5V, 9.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1159pF @ 30V, 930pF @ 30V |
| Power - Max | 40W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-PDFN (5x6) |
Submit your RFQ for TSM6502CR RLG and get a quote within 24 hours.
