Taiwan Semiconductor Corporation
MOSFET 2 P-CH 30V 4.9A 8SOP

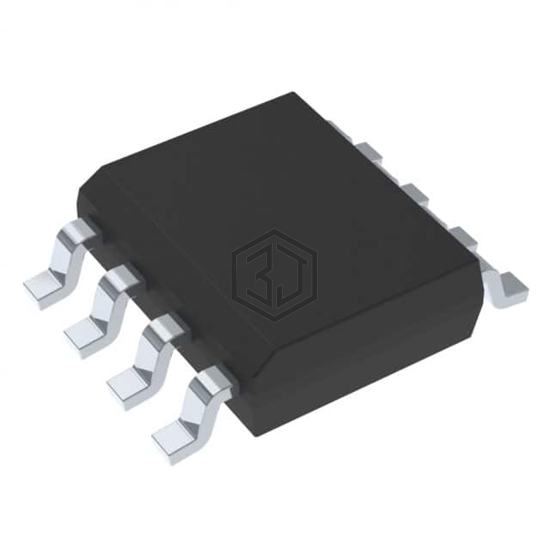

TSM4953DCS RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 P-CH 30V 4.9A 8SOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), power - max 2.5W.
In Stock: 794
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 P-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 4.9A (Ta) |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 4.9A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 28nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 745pF @ 15V |
| Power - Max | 2.5W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
Submit your RFQ for TSM4953DCS RLG and get a quote within 24 hours.
