Taiwan Semiconductor Corporation
DUAL N-CHANNEL POWER MOSFET 60V,

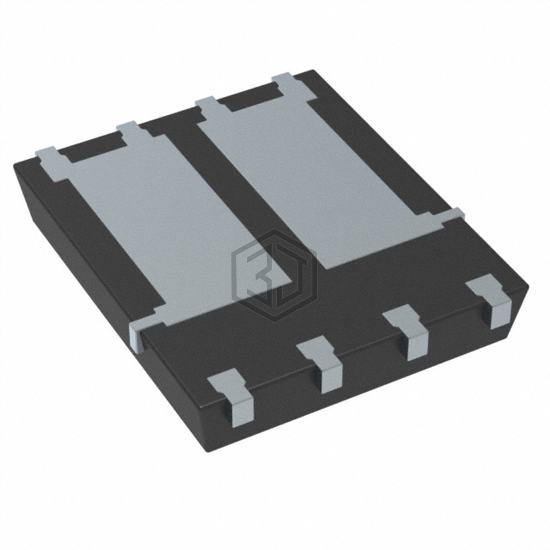

TSM300NB06DCR RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. DUAL N-CHANNEL POWER MOSFET 60V,. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 2W (Ta), 40W (Tc).
In Stock: 2,976
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta), 25A (Tc) |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1079pF @ 30V |
| Power - Max | 2W (Ta), 40W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-PDFN (5x6) |
Submit your RFQ for TSM300NB06DCR RLG and get a quote within 24 hours.
