Taiwan Semiconductor Corporation
60V, 0.22A, DUAL N-CHANNEL POWER

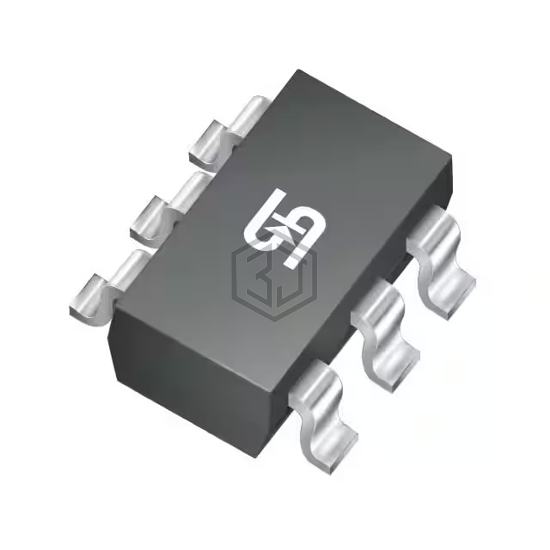

TSM2N7002AKDCU6 RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. 60V, 0.22A, DUAL N-CHANNEL POWER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363, power - max 240mW (Ta).
In Stock: 2,950
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 220mA (Ta) |
| Rds On (Max) @ Id, Vgs | 2.5Ohm @ 220mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 0.91nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 30pF @ 30V |
| Power - Max | 240mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SOT-363 |
Submit your RFQ for TSM2N7002AKDCU6 RFG and get a quote within 24 hours.
