Taiwan Semiconductor Corporation
MOSFET N/P-CH 20V 11.6A/9A 6TDFN

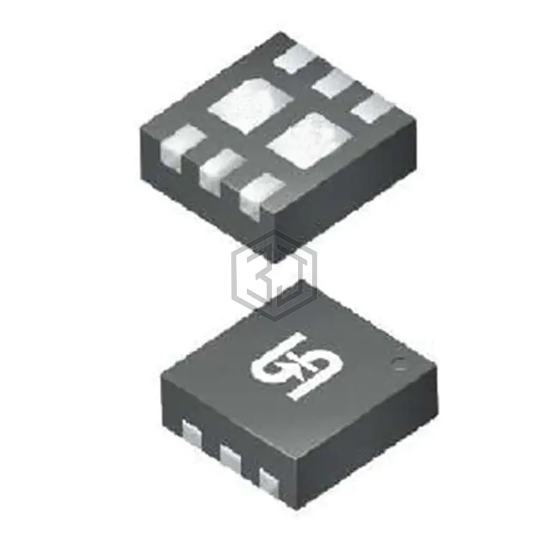

TSM2537CQ RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET N/P-CH 20V 11.6A/9A 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 6.25W.
In Stock: 20,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N and P-Channel |
| FET Feature | Logic Level Gate, 1.8V Drive |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 11.6A (Tc), 9A (Tc) |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 6.4A, 4.5V, 55mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.1nC @ 4.5V, 9.8nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 677pF @ 10V, 744pF @ 10V |
| Power - Max | 6.25W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (2x2) |
Submit your RFQ for TSM2537CQ RFG and get a quote within 24 hours.
