Taiwan Semiconductor Corporation

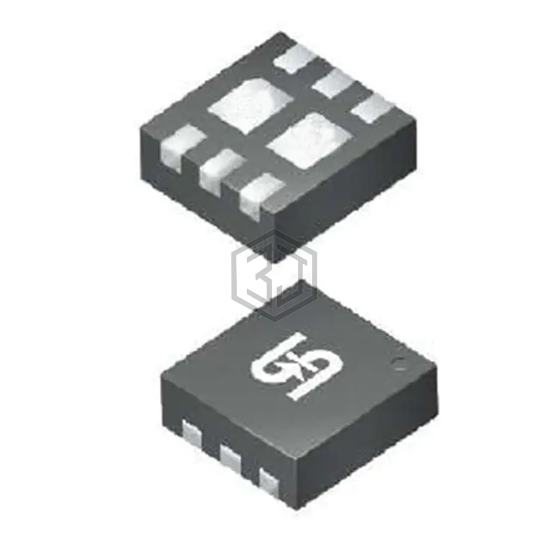

MOSFET 2 N-CH 20V 5.8A 6TDFN
TSM250N02DCQ RFG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. MOSFET 2 N-CH 20V 5.8A 6TDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-VDFN Exposed Pad, power - max 620mW.
In Stock: 75,206
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 5.8A (Tc) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 800mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 775pF @ 10V |
| Power - Max | 620mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (2x2) |
Submit your RFQ for TSM250N02DCQ RFG and get a quote within 24 hours.
