Taiwan Semiconductor Corporation

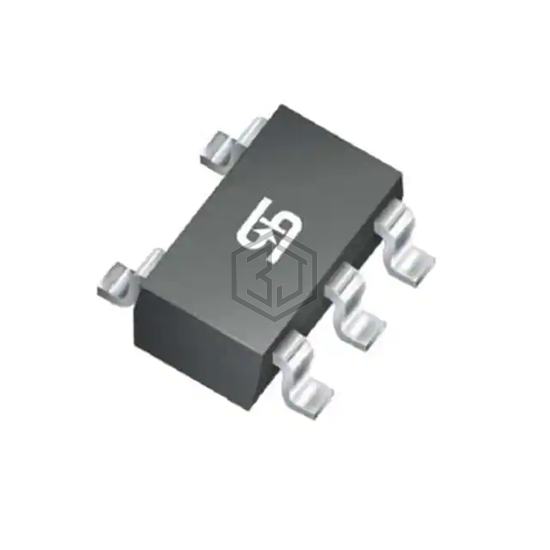

IC REG LIN POS ADJ 150MA SOT25
TS5205CX5 RFG is a PMIC - Voltage Regulators - Linear manufactured by Taiwan Semiconductor Corporation. IC REG LIN POS ADJ 150MA SOT25. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SC-74A, SOT-753, current - supply (max) 1.9 mA.
In Stock: 2,320
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 8V |
| Voltage Dropout (Max) | 0.275V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 125 µA |
| Current - Supply (Max) | 1.9 mA |
| PSRR | 75dB (100Hz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MIC5233YM5-TR | Microchip Technology | IC REG LIN POS ADJ 100MA SOT23-5 | 62% | View |
| ADP7105ARDZ | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8SOIC | 61% | View |
| ADP7104ACPZ-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8LFCSP | 61% | View |
| ADP7105ARDZ-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8SOIC | 61% | View |
| ADP7105ACPZ-R2 | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8LFCSP | 61% | View |
| ADP7104ARDZ | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8SOIC | 61% | View |
Submit your RFQ for TS5205CX5 RFG and get a quote within 24 hours.
