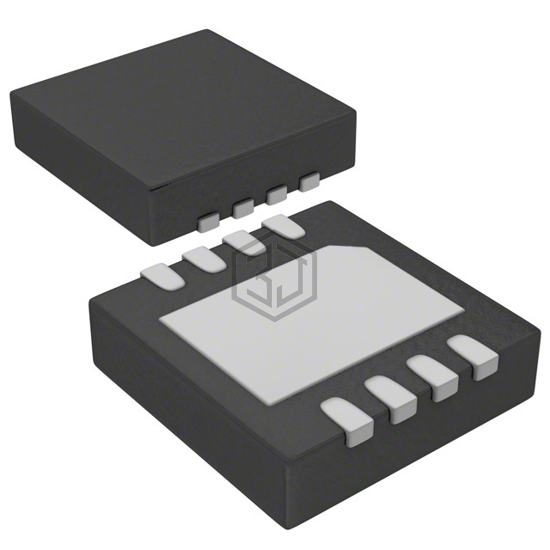

IC REG LIN POS ADJ 500MA 8LFCSP
ADP7105ACPZ-R2 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 1.6 mA.
In Stock: 478
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 19V |
| Voltage Dropout (Max) | 0.55V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 900 µA |
| Current - Supply (Max) | 1.6 mA |
| PSRR | 80dB ~ 50dB (10kHz ~ 100kHz) |
| Control Features | Enable, Power Good, Under Voltage Lockout |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP7105ACPZ-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8LFCSP | 100% | View |
| ADP7105ARDZ | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8SOIC | 100% | View |
| ADP7104ACPZ-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8LFCSP | 100% | View |
| ADP7104ARDZ-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8SOIC | 100% | View |
| ADP7105ARDZ-R7 | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8SOIC | 100% | View |
| ADP7104ARDZ | Analog Devices Inc. | IC REG LIN POS ADJ 500MA 8SOIC | 100% | View |
Submit your RFQ for ADP7105ACPZ-R2 and get a quote within 24 hours.
