Taiwan Semiconductor Corporation
SWITCHING REGULATOR, DC-DC, BUCK

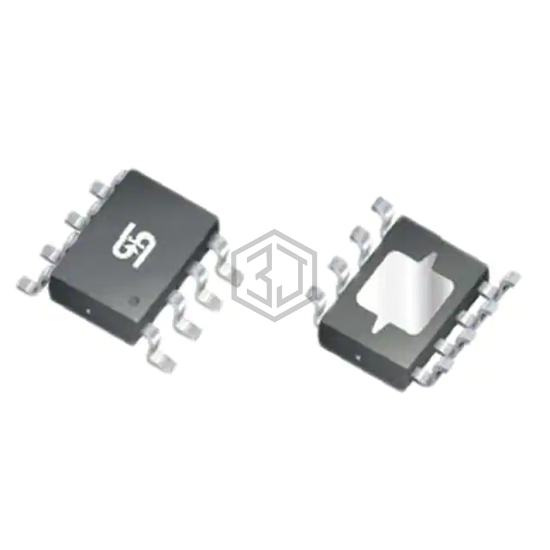

TS2509CS RLG is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Taiwan Semiconductor Corporation. SWITCHING REGULATOR, DC-DC, BUCK. Key specifications: mounting type Surface Mount, voltage - supply (vcc/vdd) 4.5V ~ 23V, package / case 8-SOIC (0.154", 3.90mm Width), output type PWM Signal.
In Stock: 6,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 23V |
| Frequency - Switching | 500kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Soft Start |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT2702GQW | Richtek USA Inc. | IC PWM CTRLR WQFN16 | 100% | View |
| LTC3870EUF-1#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 84% | View |
| LTC3870IUF-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 84% | View |
| ZL2004ALNF-01 | Renesas Electronics America Inc | IC REG CTRLR BUCK PMBUS 32QFN | 84% | View |
| LTC3882IUJ#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 40QFN | 80% | View |
| LTC3882EUJ#PBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 40QFN | 80% | View |
Submit your RFQ for TS2509CS RLG and get a quote within 24 hours.
