Renesas Electronics America Inc

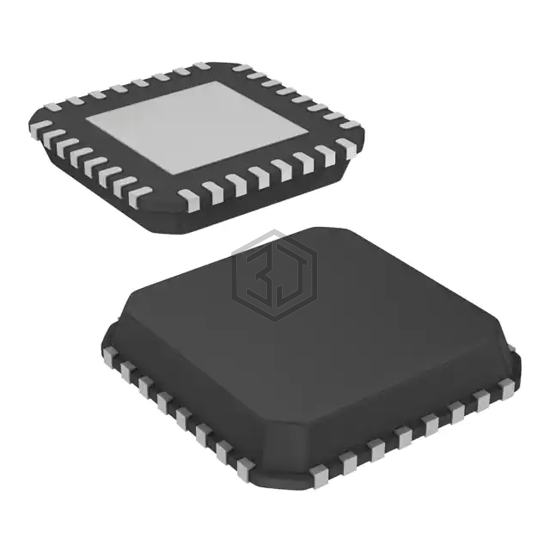

IC REG CTRLR BUCK PMBUS 32QFN
ZL2004ALNF-01 is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Renesas Electronics America Inc. IC REG CTRLR BUCK PMBUS 32QFN. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 65°C (TA), voltage - supply (vcc/vdd) 8V ~ 10V, package / case 32-VFQFN Exposed Pad.
In Stock: 2,874
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM Signal |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 10V |
| Frequency - Switching | 400kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | - |
| Clock Sync | Yes |
| Serial Interfaces | I²C, PMBus, SMBus |
| Control Features | Current Limit, Enable, Power Good, Soft Start, Tracking |
| Operating Temperature | 0°C ~ 65°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
ZL2004ALNF-01 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RT2702GQW | Richtek USA Inc. | IC PWM CTRLR WQFN16 | 84% | View |
| TS2509CS RLG | Taiwan Semiconductor Corporation | SWITCHING REGULATOR, DC-DC, BUCK | 84% | View |
| ISL68201IRZ | Renesas Electronics America Inc | IC REG CTRLR BUCK PMBUS 24QFN | 82% | View |
| LTC3870IUF-1#PBF | Analog Devices Inc. | IC REG CTRLR BUCK 24QFN | 69% | View |
| LTC3882IUJ#TRPBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 40QFN | 64% | View |
| LTC3882EUJ#PBF | Analog Devices Inc. | IC REG CTRLR BUCK PMBUS 40QFN | 64% | View |
Submit your RFQ for ZL2004ALNF-01 and get a quote within 24 hours.
