Taiwan Semiconductor Corporation
40V, 50A, DUAL N-CHANNEL POWER M

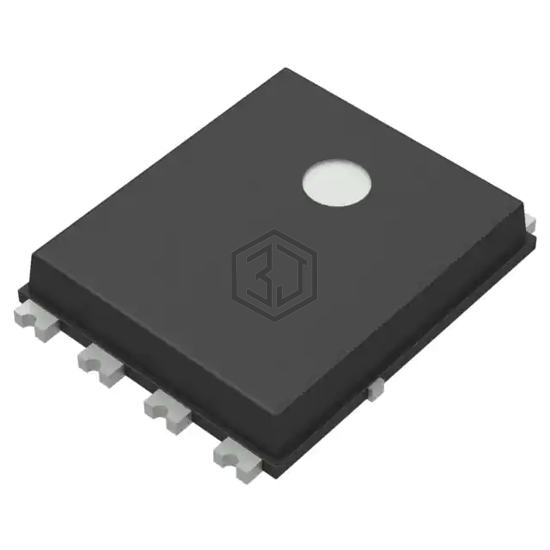

TQM110NB04DCR RLG is a Transistors - FETs, MOSFETs - Arrays manufactured by Taiwan Semiconductor Corporation. 40V, 50A, DUAL N-CHANNEL POWER M. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN, power - max 2.5W (Ta), 58W (Tc).
In Stock: 3,247
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta), 50A (Tc) |
| Rds On (Max) @ Id, Vgs | 11mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1354pF @ 20V |
| Power - Max | 2.5W (Ta), 58W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-PDFNU (5x6) |
Submit your RFQ for TQM110NB04DCR RLG and get a quote within 24 hours.
