CONDUCTIVE POLYMER SOLID CAPACIT

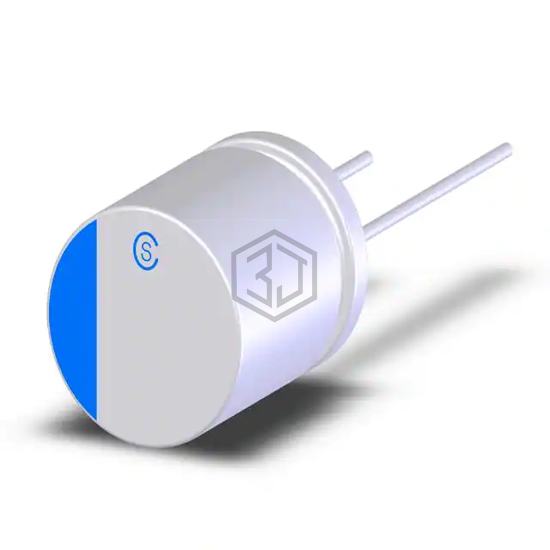

UGS1P681MNN0816U is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 22 V, package / case Radial, Can.
In Stock: 6,299
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 22 V |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.65 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 567AVG025MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 25V T/H | 84% | View |
| RNU0J681MDN1PX | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 65% | View |
| 4SEPC680M+TS | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 4V T/H | 63% | View |
| RR50E681MDN1PX | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 60% | View |
| RS80J561MDNASQPX | Nichicon | CAP ALUM POLY 560UF 20% 6.3V T/H | 59% | View |
| RF80E561MDN1JT | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 58% | View |
Submit your RFQ for UGS1P681MNN0816U and get a quote within 24 hours.
