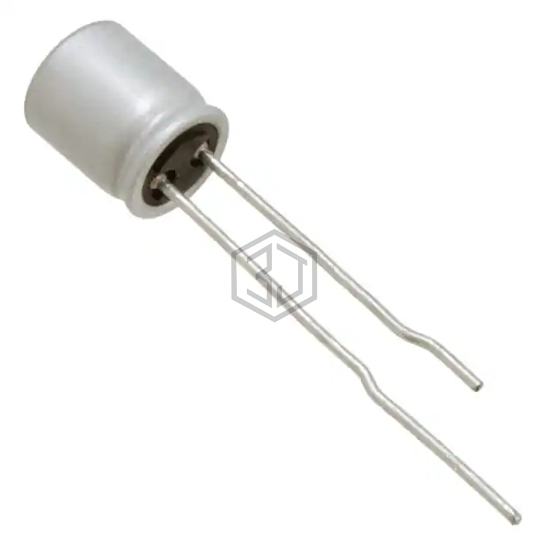

CAP ALUM POLY 560UF 20% 6.3V T/H
RS80J561MDNASQPX is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 560UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,692
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 500 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RNU0J681MDN1PX | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 86% | View |
| 6SEPC560MW+TSS | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 6.3V T/H | 83% | View |
| APSA4R0ELL561MHB5S | United Chemi-Con | CAP ALUM POLY 560UF 20% 4V T/H | 78% | View |
| PLF1A561MDO1TD | Nichicon | CAP ALUM POLY 560UF 20% 10V T/H | 76% | View |
| RS80E561MDNASQPX | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 74% | View |
| RF80E561MDN1JT | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 71% | View |
Submit your RFQ for RS80J561MDNASQPX and get a quote within 24 hours.
