ALUMINUM ELECTROLYTIC CAPACITORS

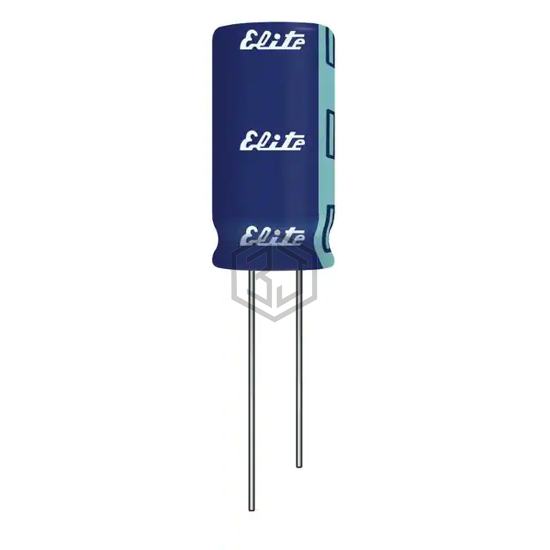

SM1V220MPZ0511U is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 3,034
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVR1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 100% | View |
| UPJ1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 96% | View |
| 50YXG22MEFCTA5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 85% | View |
| 515D226M035JA8PE3 | Vishay Sprague | CAP ALUM 22UF 20% 35V RADIAL | 78% | View |
| 25ML22MEFC5X5 | Rubycon | CAP ALUM 22UF 20% 25V RADIAL | 61% | View |
| ESG226M400AL4AA | KEMET | CAP ALUM 22UF 20% 400V RADIAL | 54% | View |
