ALUMINUM ELECTROLYTIC CAPACITORS

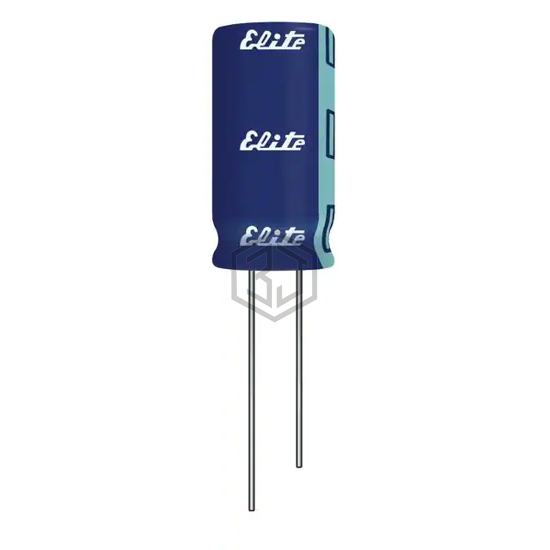

SM1H220MPN0511 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 1,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 190 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213828229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V AXIAL | 89% | View |
| B41851A6226M7 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 50V RADIAL | 89% | View |
| ULD1H220MDD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 86% | View |
| EKMQ101EC3220MF11D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 75% | View |
| 100YXF22MEFC8X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 73% | View |
| EEA-FC1E220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V RADIAL | 63% | View |
Submit your RFQ for SM1H220MPN0511 and get a quote within 24 hours.
