ALUMINUM ELECTROLYTIC CAPACITORS

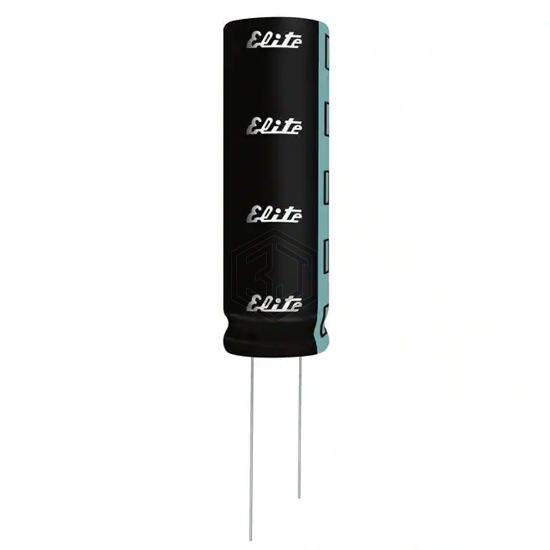

PZ2W820MNN1245A4 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 6,137
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 900 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.62 A @ 100 kHz |
| Impedance | 1.1 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420KXW82MEFC18X25 | Rubycon | CAP ALUM 82UF 20% 420V RADIAL | 96% | View |
| 500VXG82MEFC22X35 | Rubycon | CAP ALUM 82UF 20% 500V SNAP | 87% | View |
| 861111484014 | Würth Elektronik | CAP ALUM 82UF 20% 450V SNAP | 80% | View |
| LGN2X820MELC25 | Nichicon | CAP ALUM 82UF 20% 600V SNAP | 76% | View |
| B43504A826M60 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 420V SNAP | 75% | View |
| UPT2G820MHD | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 65% | View |
Submit your RFQ for PZ2W820MNN1245A4 and get a quote within 24 hours.
