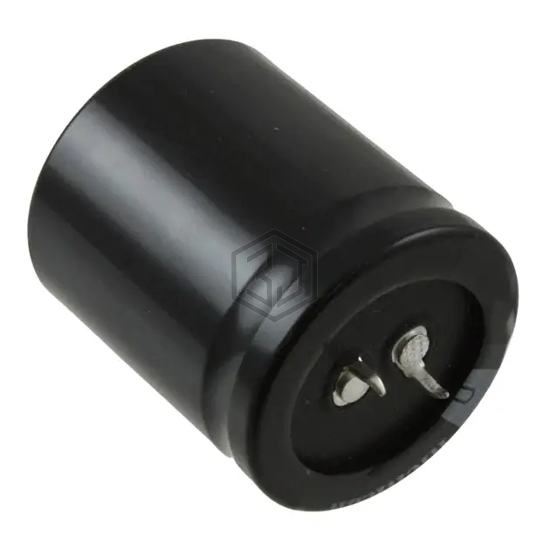

CAP ALUM 82UF 20% 600V SNAP
LGN2X820MELC25 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 600V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 600 V, package / case Radial, Can - Snap-In.
In Stock: 5,338
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 600 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 610 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 861111484014 | Würth Elektronik | CAP ALUM 82UF 20% 450V SNAP | 87% | View |
| B43504A826M60 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 420V SNAP | 82% | View |
| 500VXG82MEFC22X35 | Rubycon | CAP ALUM 82UF 20% 500V SNAP | 82% | View |
| UPT2G820MHD | Nichicon | CAP ALUM 82UF 20% 400V RADIAL | 77% | View |
| PZ2W820MNN1245A4 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 76% | View |
| UPZ2D820MPD | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 58% | View |
