RES 0.005 OHM 2W 3008 WIDE

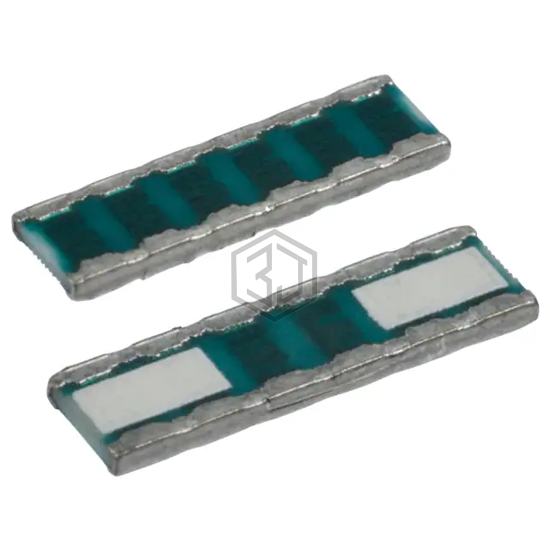

RL7520WT-R005-G is a Chip Resistor - Surface Mount manufactured by Susumu. RES 0.005 OHM 2W 3008 WIDE. Key specifications: operating temperature -55°C ~ 125°C, package / case Wide 3008 (2075 Metric), 0830, size / dimension 0.079" L x 0.295" W (2.00mm x 7.50mm), power (watts) 2W.
In Stock: 3,756
| Attribute | Value |
|---|---|
| Product Status | Active |
| Resistance | 5 mOhms |
| Tolerance | ±2% |
| Power (Watts) | 2W |
| Composition | Thin Film |
| Features | Current Sense |
| Temperature Coefficient | 0/ +420ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | Wide 3008 (2075 Metric), 0830 |
| Supplier Device Package | 0830 |
| Ratings | - |
| Size / Dimension | 0.079" L x 0.295" W (2.00mm x 7.50mm) |
| Height - Seated (Max) | 0.028" (0.70mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
