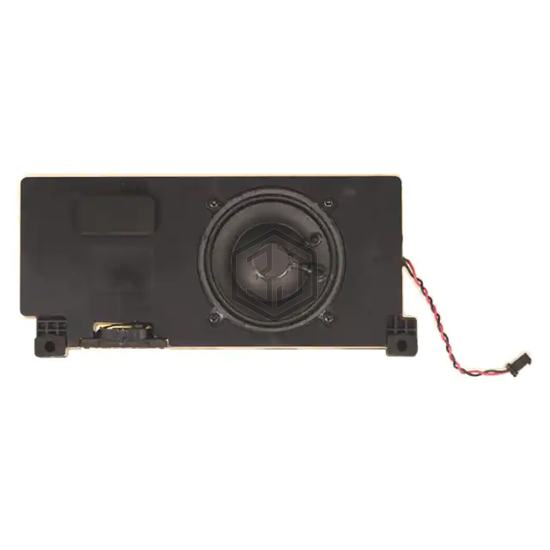

2-1/2'' SPEAKER 6OHM 10W 83DB FU
SUPB6510 is a Speakers manufactured by Sure Electronics. 2-1/2'' SPEAKER 6OHM 10W 83DB FU. Key specifications: size / dimension 8.189" L x 3.701" W (208.00mm x 94.00mm), termination Solder Eyelet(s), power - max 15 W, frequency range 180 Hz ~ 20 kHz.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 180 Hz ~ 20 kHz |
| Frequency - Self Resonant | 180Hz |
| Impedance | 6 Ohms |
| Efficiency - dBA | 83.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 W |
| Power - Max | 15 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 8.189" L x 3.701" W (208.00mm x 94.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
Submit your RFQ for SUPB6510 and get a quote within 24 hours.
