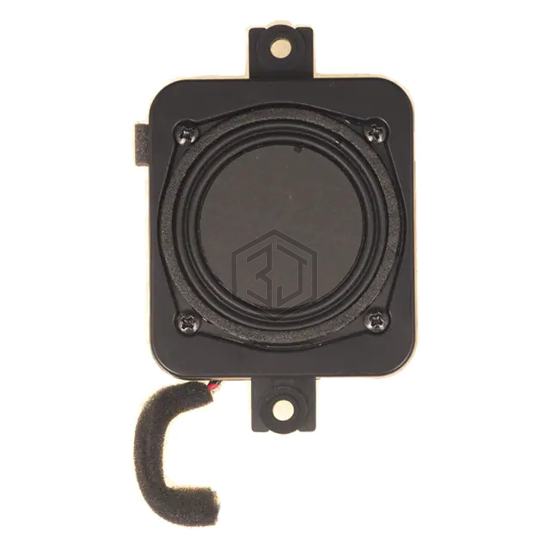

2'' SPEAKER 4OHM 5W 77DB FULL RA
SUPB5005 is a Speakers manufactured by Sure Electronics. 2'' SPEAKER 4OHM 5W 77DB FULL RA. Key specifications: size / dimension 2.953" L x 2.598" W (75.00mm x 66.00mm), termination Solder Eyelet(s), power - max 8 W, frequency range 320 Hz ~ 15 kHz.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 320 Hz ~ 15 kHz |
| Frequency - Self Resonant | 320Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 77.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 5 W |
| Power - Max | 8 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | - |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.953" L x 2.598" W (75.00mm x 66.00mm) |
| Height - Seated (Max) | 0.768" (19.50mm) |
Submit your RFQ for SUPB5005 and get a quote within 24 hours.
