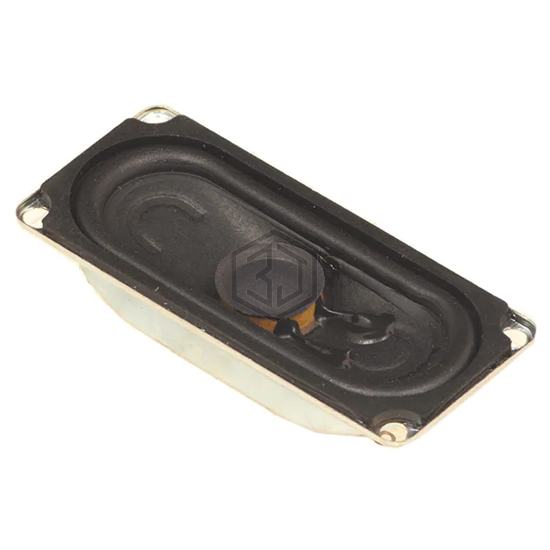

2-3/4''X1-1/4'' SPEAKER 8OHM 2W
SUFR7302 is a Speakers manufactured by Sure Electronics. 2-3/4''X1-1/4'' SPEAKER 8OHM 2W. Key specifications: size / dimension 2.768" L x 1.193" W (70.30mm x 30.30mm), termination Solder Eyelet(s), power - max 4 W, frequency range 191 Hz ~ 20 kHz.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 191 Hz ~ 20 kHz |
| Frequency - Self Resonant | 260Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 70.00 |
| Efficiency - Testing | 500mW/500mm |
| Efficiency - Type | Sensitivity |
| Power - Rated | 3 W |
| Power - Max | 4 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.768" L x 1.193" W (70.30mm x 30.30mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
Submit your RFQ for SUFR7302 and get a quote within 24 hours.
