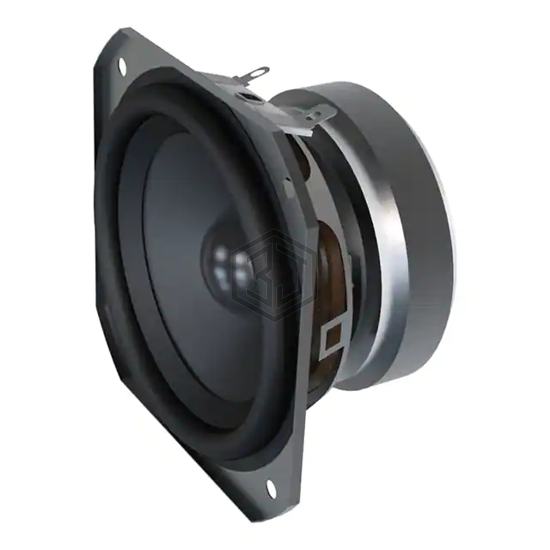

SPEAKER 4OHM 10W TOP PORT 79DB
SUFR7010 is a Speakers manufactured by Sure Electronics. SPEAKER 4OHM 10W TOP PORT 79DB. Key specifications: size / dimension 3.071" L x 3.071" W (78.00mm x 78.00mm), termination Solder Eyelet(s), power - max 15 W, frequency range 100 Hz ~ 20 kHz.
In Stock: 468
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 100 Hz ~ 20 kHz |
| Frequency - Self Resonant | 108Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 79.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 10 W |
| Power - Max | 15 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
Submit your RFQ for SUFR7010 and get a quote within 24 hours.
