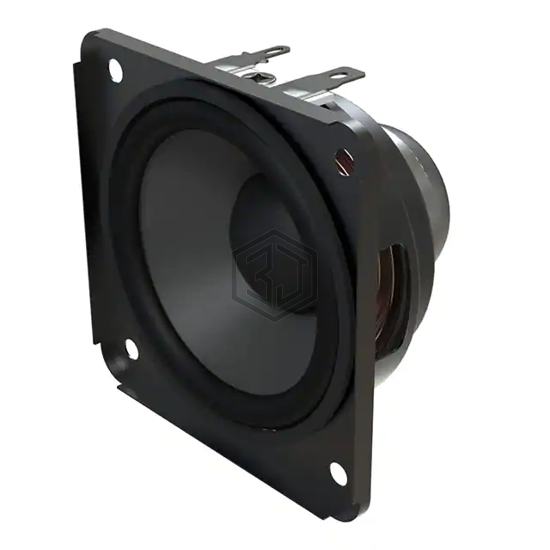

SUFR5015 - Sure Electronics - Speakers

SUFR5015

Sure Electronics

SPEAKER 12OHM 15W TOP PORT 83DB

SUFR5015 is a Speakers manufactured by Sure Electronics. SPEAKER 12OHM 15W TOP PORT 83DB. Key specifications: size / dimension 2.854" L x 0.906" W (72.50mm x 23.00mm), termination Solder Eyelet(s), power - max 20 W, frequency range 180 Hz ~ 20 kHz.

In Stock: 498

Product Attributes

AttributeValue
Product StatusActive
TechnologyMagnetic
TypeGeneral Purpose
Frequency Range180 Hz ~ 20 kHz
Frequency - Self Resonant196Hz
Impedance12 Ohms
Efficiency - dBA83.00
Efficiency - Testing1W/1M
Efficiency - TypeSound Pressure Level (SPL)
Power - Rated15 W
Power - Max20 W
Port LocationTop
ShapeRectangular
Material - ConePaper
Material - MagnetNd-Fe-B
Ingress Protection-
Ratings-
TerminationSolder Eyelet(s)
Size / Dimension2.854" L x 0.906" W (72.50mm x 23.00mm)
Height - Seated (Max)1.512" (38.40mm)

Frequently Asked Questions

SUFR5015 is a Speakers manufactured by Sure Electronics. SPEAKER 12OHM 15W TOP PORT 83DB

The size of SUFR5015 is 2.854" L x 0.906" W (72.50mm x 23.00mm).

The termination type of SUFR5015 is Solder Eyelet(s).

The power rating of SUFR5015 is 20 W.

The resistance of SUFR5015 is 12 Ohms.
