1.5'' SPEAKER 4OHM 4W 78DB FULL

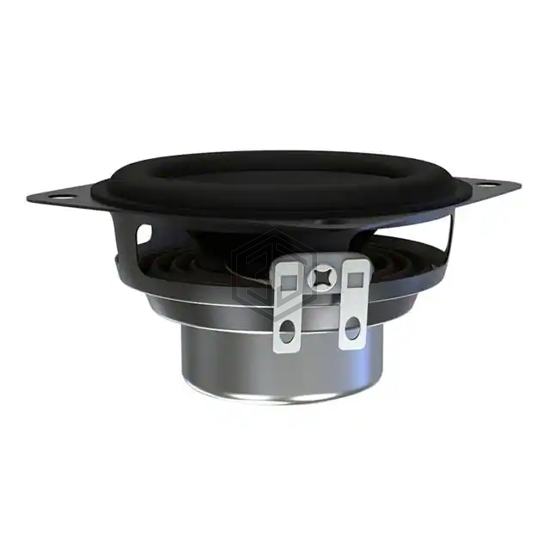

SUFR4004 is a Speakers manufactured by Sure Electronics. 1.5'' SPEAKER 4OHM 4W 78DB FULL. Key specifications: size / dimension 2.992" L x 1.890" W (76.00mm x 48.00mm), termination Solder Eyelet(s), power - max 7 W, frequency range 260 Hz ~ 20 kHz.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Magnetic |
| Type | General Purpose |
| Frequency Range | 260 Hz ~ 20 kHz |
| Frequency - Self Resonant | 190Hz |
| Impedance | 4 Ohms |
| Efficiency - dBA | 78.00 |
| Efficiency - Testing | 1W/1M |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Power - Rated | 4 W |
| Power - Max | 7 W |
| Port Location | Top |
| Shape | Rectangular |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Ingress Protection | - |
| Ratings | - |
| Termination | Solder Eyelet(s) |
| Size / Dimension | 2.992" L x 1.890" W (76.00mm x 48.00mm) |
| Height - Seated (Max) | 0.933" (23.70mm) |
Submit your RFQ for SUFR4004 and get a quote within 24 hours.
