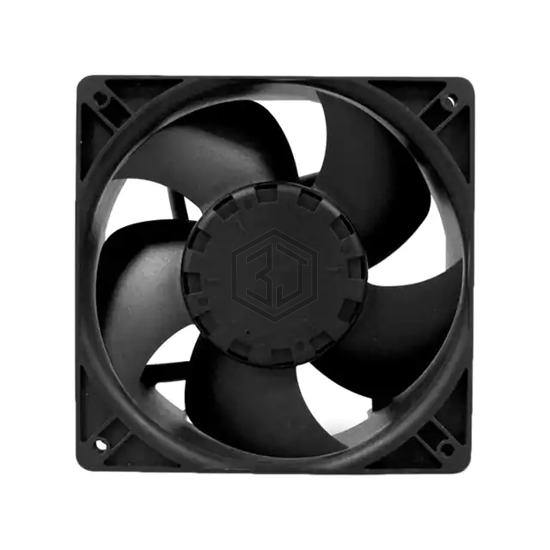

FAN AXIAL 120X38MM 100-240V IP55
CF4113HBL-000U-AB9 is a AC Fans manufactured by Sunon Fans. FAN AXIAL 120X38MM 100-240V IP55. Key specifications: operating temperature -13 ~ 158°F (-25 ~ 70°C), voltage - rated 110/230VAC, size / dimension Square - 120mm L x 120mm H, termination 2 Wire Leads.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Rated | 110/230VAC |
| Size / Dimension | Square - 120mm L x 120mm H |
| Width | 38.00mm |
| Air Flow | 109.0 CFM (3.05m³/min) |
| Static Pressure | 0.370 in H2O (92.2 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Dual Voltage, Electronic Commutation (EC) |
| Noise | 44.9dB(A) |
| Power (Watts) | 5.10W |
| RPM | 3500 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) |
| Approval Agency | CE, CUR, TUV, UL |
| Weight | 0.699 lb (317.06 g) |
Submit your RFQ for CF4113HBL-000U-AB9 and get a quote within 24 hours.
