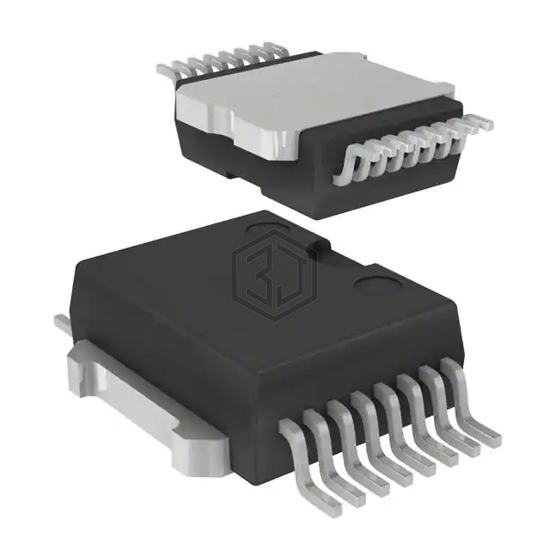

IC PWR DRIVER N-CHAN 1:1 PWRSO16
VNQ05XSP1613TR is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRIVER N-CHAN 1:1 PWRSO16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case 16-PowerBSOP (0.370", 9.40mm Width).
In Stock: 5,764
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 4 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 5.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 5A |
| Rds On (Typ) | 110mOhm (Max) |
| Input Type | Non-Inverting |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerSO-16™ |
| Package / Case | 16-PowerBSOP (0.370", 9.40mm Width) |
VNQ05XSP1613TR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BTS54220LBEAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:2 TSON-24 | 100% | View |
| VNQ05XSP16 | STMicroelectronics | IC PWR DRIVER N-CHAN 1:1 PWRSO16 | 100% | View |
| VNQ810PEPTR-E | STMicroelectronics | IC PWR DRVR N-CHAN 1:1 PWRSSO24 | 100% | View |
| BTS54220LBFAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:2 TSON-24 | 100% | View |
| BTS50301EJAXUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 DSO-8 | 69% | View |
| IPS1025HTR | STMicroelectronics | IPS1025 | 66% | View |
Submit your RFQ for VNQ05XSP1613TR and get a quote within 24 hours.
