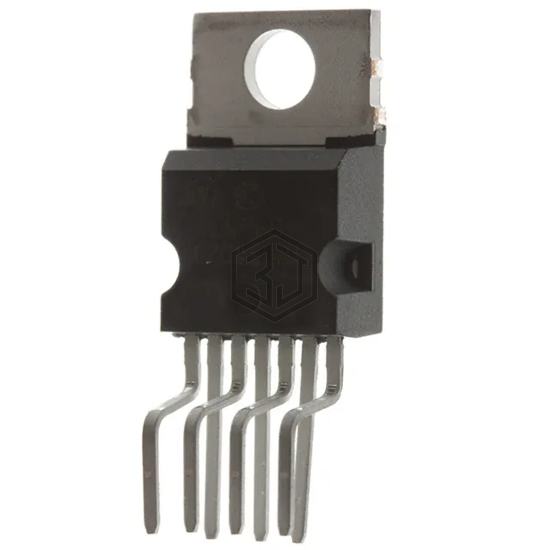

IC PWR DRVR N-CH 1:1 HEPTAWATT-7
VND05B is a PMIC - Power Distribution Switches, Load Drivers manufactured by STMicroelectronics. IC PWR DRVR N-CH 1:1 HEPTAWATT-7. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) Not Required, package / case Heptawatt-7 (Vertical, Bent and Staggered Leads).
In Stock: 9,645
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 6V ~ 26V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.6A |
| Rds On (Typ) | 200mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | 7-HEPTAWATT |
| Package / Case | Heptawatt-7 (Vertical, Bent and Staggered Leads) |
VND05B is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VND05B(011Y) | STMicroelectronics | IC PWR DRVR N-CH 1:1 HEPTAWATT-7 | 100% | View |
| VND05B-11-E | STMicroelectronics | IC PWR SMART SSR N-CH HEPTAWATT7 | 100% | View |
| VND05B-E | STMicroelectronics | IC PWR SMART SSR N-CH HEPTAWATT7 | 100% | View |
| VND05B(012Y) | STMicroelectronics | IC PWR DRVR N-CH 1:1 HEPTAWATT-7 | 100% | View |
| VND05B-12-E | STMicroelectronics | IC PWR SMART SSR N-CH HEPTAWATT7 | 100% | View |
| IPS511 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO220AB | 84% | View |
